foldable boom crane mounted on truck
Privacy statement: Your privacy is very important to Us. Our company promises not to disclose your personal information to any external company with out your explicit permission.
Selling Units: Others
Products--100% First Class!
Transportation--100% Convenience, Efficient!
Services--24hours service!
---------------------------------------------------------------------------------
Our factory is professional manufacturer in truck area,
guarantee all trucks Brand-New and High-Quality.
Crane is a device that can be operated left and right, can be rotated 360 degrees forward and backward, and can also be rotated in all directions.
Some common types of crane include:
1. Straight crane: It has 2tons, 3.2tons, 4tons, 5tons, 6.3tons, 8tons, 10tons, 12tons, 14tons, 16tons and 20tons.
2. Folding crane: It has 2tons, 3.2tons, 4tons, 5tons, 6.3tons, 8tons, 10tons, 12tons, 14tons, 16tons, 20tons and 25tons.
Cranes are widely used in oil fields, telecommunications, electric power, factories, cement board factories and other places; various loading, unloading, installation and lifting operations, especially suitable for field lifting, rescue operations and narrow places such as stations, ports, warehouses, construction sites, etc.
» I.Product Describution:
» II.Truck Specification
Crane | |||
S/N | Description | Details | Remark |
1 | Material | Q235A |
|
2 | Working Platform | 360°turning(left or right), H-shape legs 360° |
|
3 | Extendable boom section | 1/2/3 |
|
4 | Boom Type | Foldable |
|
5 | Lifting Max.Height | 9m |
|
6 | Work Radius | 7.56m |
|
7 |
Equipment | Using the H type support leg,Each leg can be adjusted separately adjusts the frame level, leg span is big, the whole machine has good stability. The crane using the 3.2ton boom. |
|
8 | Max Lifting capacity | 3200kg |
|
9 | Max lifting moment | 6.72T.M |
|
10 | Recommend power | 14kw |
|
11 | Max Oil flow of hydraulic system | 25L/min |
|
12 | Max Pressure of Hydraulic system | 20MPa |
|
13 | Oil tank capacity | 30L |
|
14 | Crane weight | 1229kg |
|
15 | Installation space | 850mm |
|
16 | Rotation angle | 360°All Rotation |
|

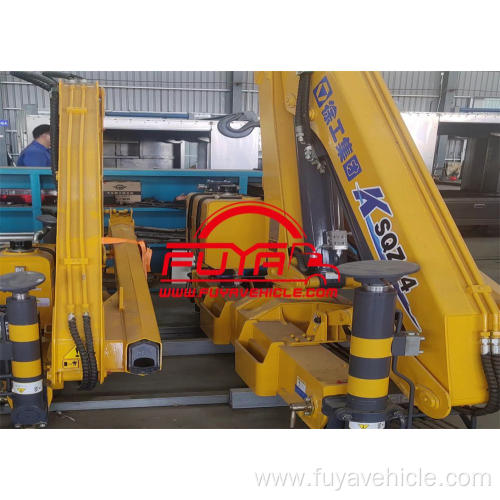

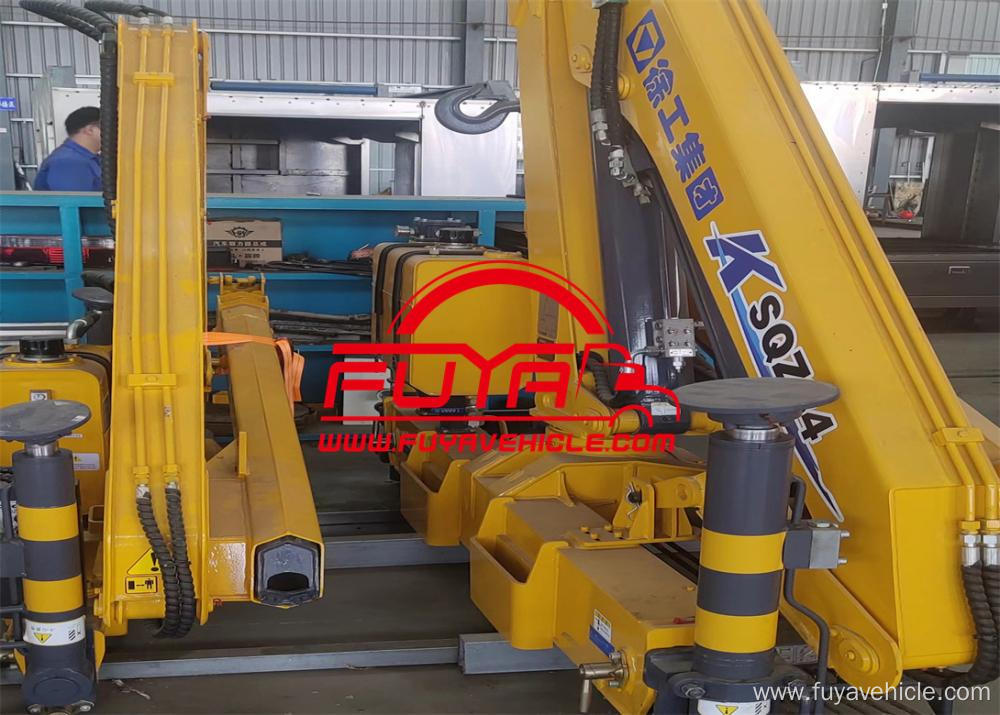

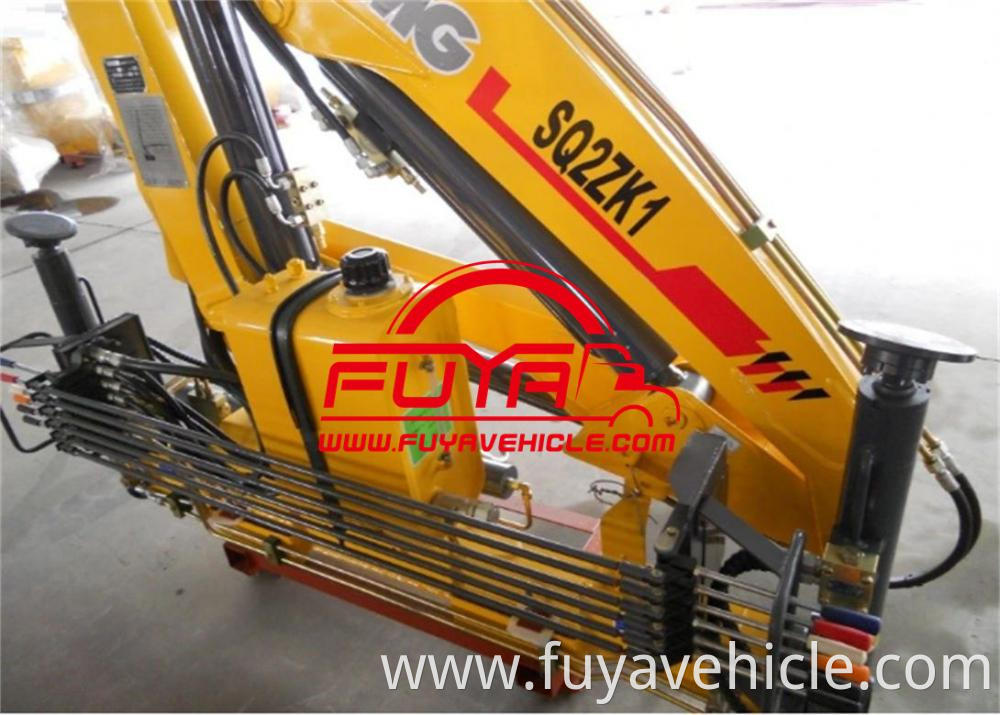

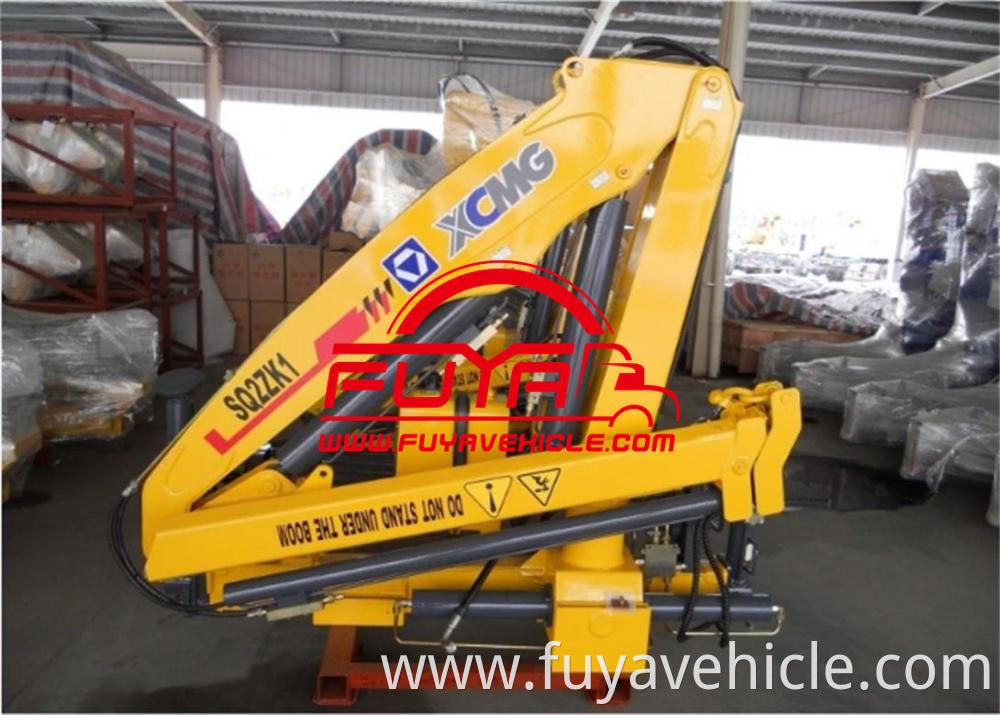

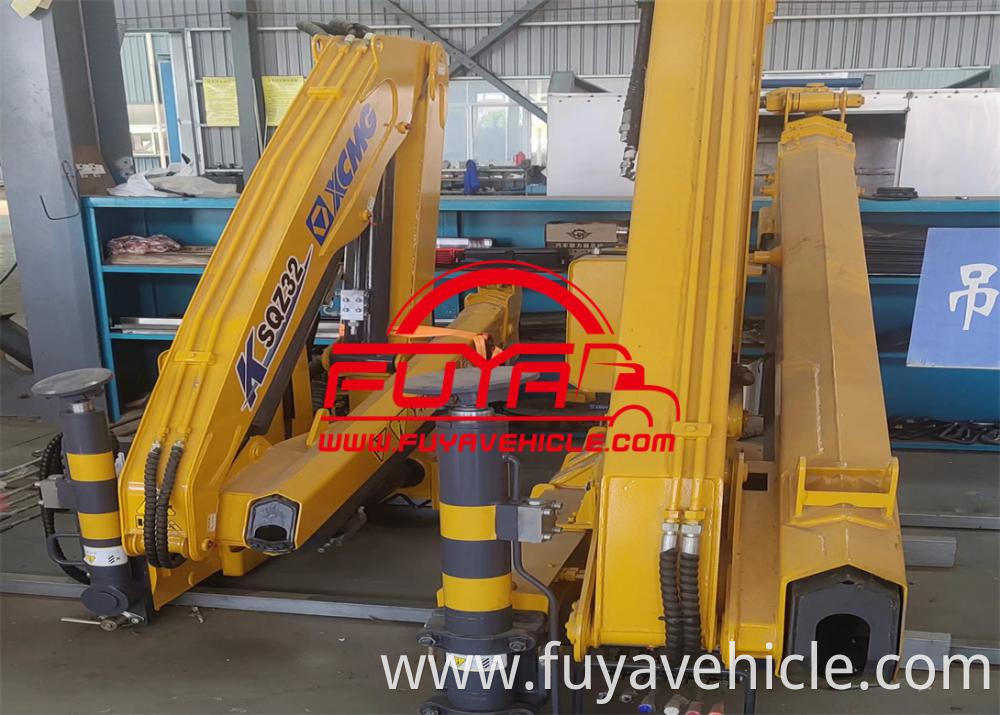

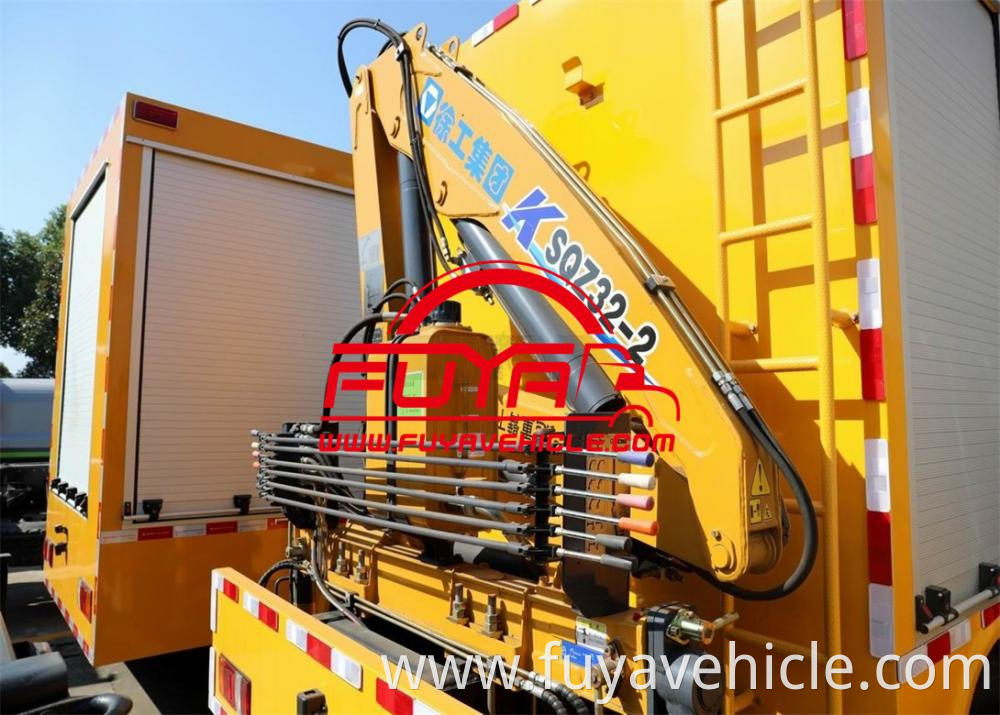

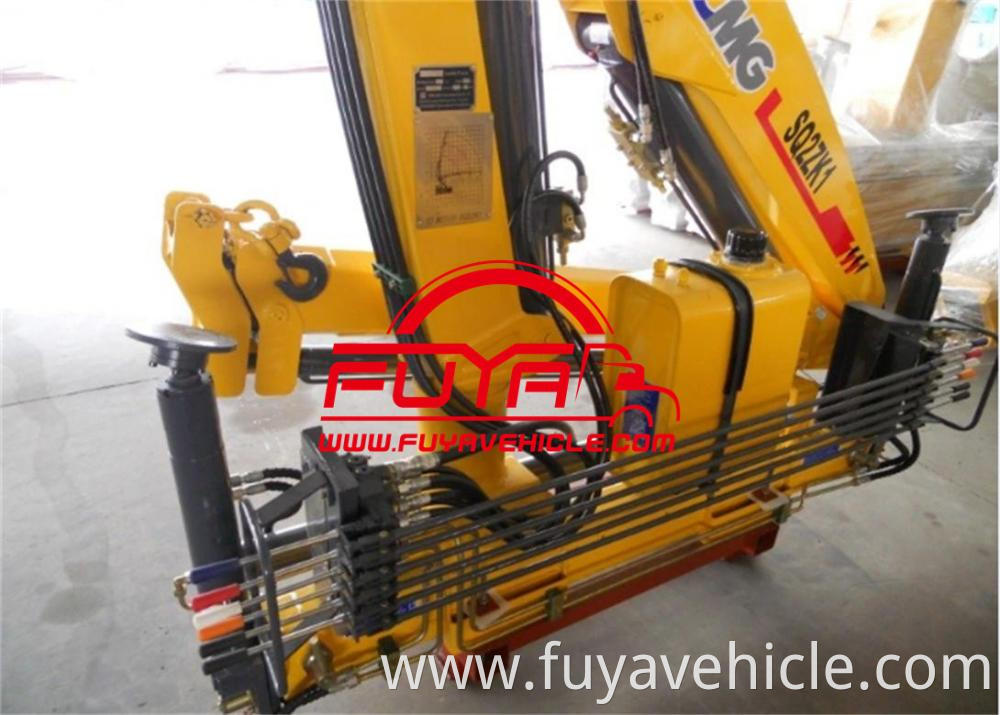

» III.More Details Photos
» IV. SHIPPING:RORO/BULK VESSEL/CONTAINER
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
